Product Details ofFlexible Cylindrical LED Screen P3
Super Flexible
It can be used to shape custom designs such as roll, bend and wobble.
Based on customer requirements.
Ultra-thin
Adopting special material and advanced technology, super thin and ultra light, the weight of each module is just 0.3Kg.
Easy Assemble
Easy installation, strong magnet, available for front service.
Non-cabinet
Reducing weight of LED display and cost, can be any shape design as customer required.
Application
Flexible led screen is suitable for irregular construction, such as the club, stage, studio, super market, shopping mall, stadium, concert, amusement park, sight seeing area, real estate, airport etc.
Different Models of LED Module

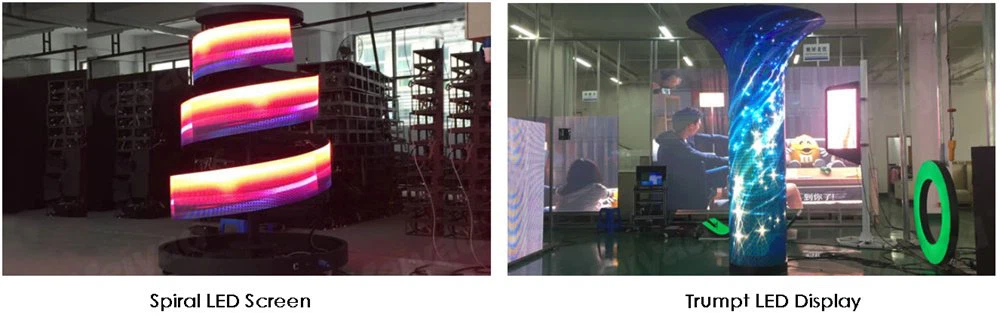

Show Cases
Flexible LED Screen P3 - Specification
Product Name | Flexible LED Screen P3 | ||||||||
Model Name | P1.8 | P2 | P2.5 | P3 | P4 | ||||
Pixel Pitch | 1.875 mm | 2 mm | 2.5 mm | 3.076 mm | 4 mm | ||||
Module Size (W*H) | 240*120 mm | 320*160 mm | 240*120 mm | 320*160 mm | 240*120 mm | 320*160 mm | 240*120 mm | 320*160 mm | 240*120 mm |
Module Resolution | 128*64 dots | 172*86 dots | 120*60 dots | 160*80 dots | 96*48 dots | 128*64 dots | 80*40 dots | 104*52 dots | 60*30 dots |
Module Material | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone |
Module Net Weight | 170 g | 300 g | 170 g | 300 g | 170 g | 300 g | 170 g | 300 g | 170 g |
LED Lamp Beads | SMD1515 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
Brightness | 700-900 cd/m² | ||||||||
Refresh Rate | ≥3840 Hz | ||||||||
Driving Mode | 1/32 | 1/43 | 1/32 | 1/40 | 1/24 | 1/32 | 1/20 | 1/26 | 1/16 |
Color Depth | 14 bit | ||||||||
Viewing Angle | 160°(H) / 160°(V) | ||||||||
Input Voltage | AC110V~240V±5% | ||||||||
Max. Power Consumption | 700 W/m² | 700 W/m² | 700 W/m² | 700 W/m² | 700 W/m² | 700 W/m² | 700 W/m² | 700 W/m² | 600 W/m² |
Ave. Power Consumption | 215 W/m² | 215 W/m² | 215 W/m² | 215 W/m² | 215 W/m² | 215 W/m² | 215 W/m² | 215 W/m² | 215 W/m² |
Working Life | ≥100,000 h | ||||||||
Protection Grade | IP20 | ||||||||
Maintenance | Front & Rear | ||||||||
