Outdoor Flexible LED Display IP65 Soft LED Screen Module
NEW ARRIVALS -- Outdoor waterproof soft LED display modules P2.5 P4 IP65
Product introduction -- Outdoor Flexible LED Display IP65 Soft LED Screen Module

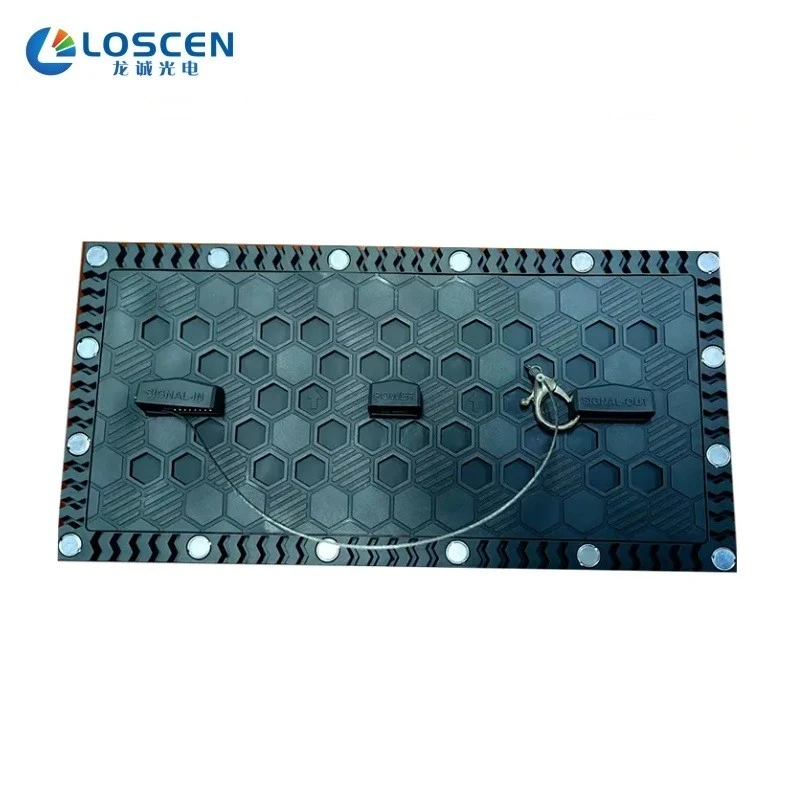

Sealed Rear Cover -- Waterproof & Dustproof
Soft silicon rear cover

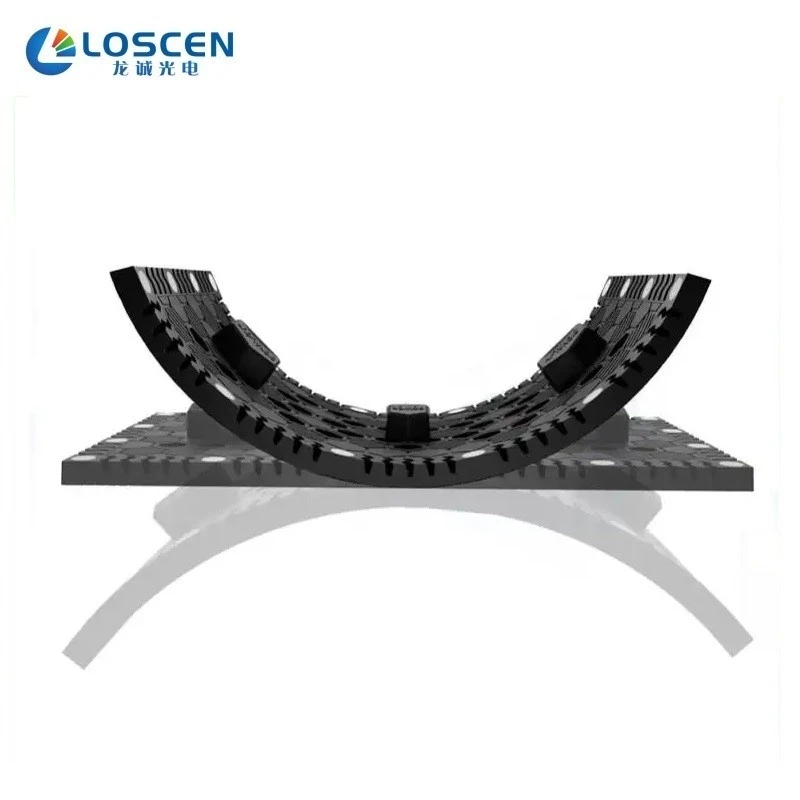

The Outdoor Flexible LED Display IP65 Soft LED Screen Module has high flexibility

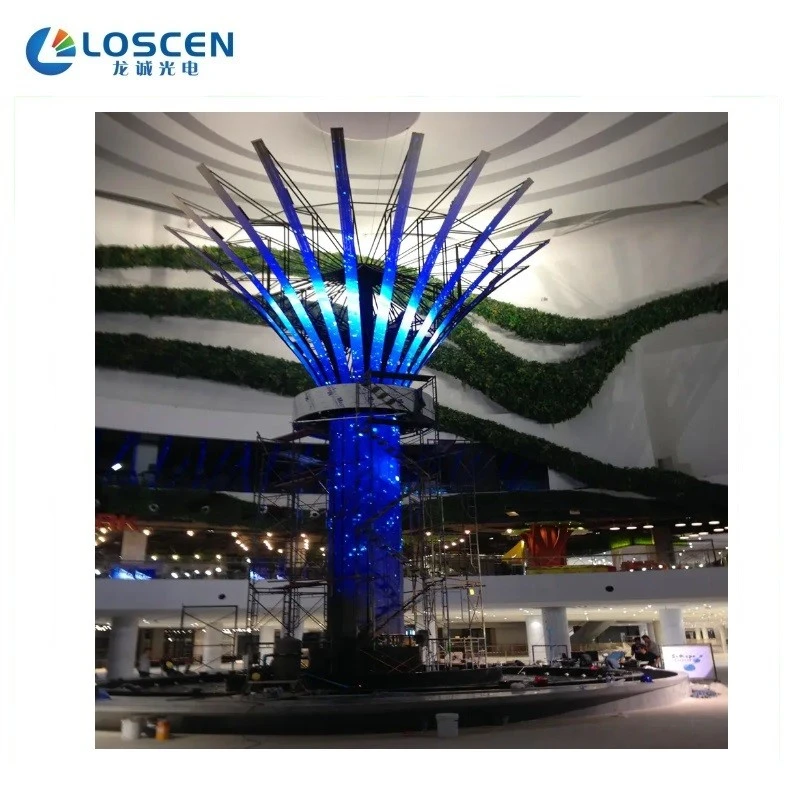

Installation method
Installing Mode Of Outdoor Flexible LED Display IP65 Soft LED Screen
Technical Specifications
Technology Parameters of of Outdoor Flexible LED Display IP65 Soft LED Screen P2.5 P4
|
LED Module |
Item |
Parameter |
|
|
Model No. |
P2.5-16s |
P4-10s |
|
|
Module size |
320*160mm |
320*160mm |
|
|
Pixel Pitch |
2.5mm |
4mm |
|
|
Pixel density |
160000dots/sq.m |
62500dots/sq.m |
|
|
Pixel configuration |
1R1G1B |
1R1G1B |
|
|
Package Mode |
SMD 3-in-1-1415 |
SMD 3-in-1-1921 |
|
|
Module Resolution |
128*64dots |
80*40dots |
|
|
Max power |
35W |
30W |
|
|
Installation/Maintenance mode |
Pre-installation/maintenance |
Pre-installation/maintenance |
|
|
Module Weight |
0.29kg |
0.3kg |
|
|
Drive type |
Constant drive |
Constant drive |
|
|
Scan Mode |
1/16s |
1/10s |
|
|
Port type |
HUB75 |
HUB75 |
|
|
Bending Radius |
≥162° |
≥162° |
|
|
Assembly diameter |
1019mm |
1019mm |
|
|
Material of module frame |
Silicone soft bottom shell |
Silicone soft bottom shell |
|
|
Flatness |
≤0.5mm |
≤0.5mm |
|
|
Change frame frequency |
60Hz |
60Hz |
|
|
Gray Level |
13bit |
13bit |
|
|
Module Protection Level |
IP65 (Supporting sealed LED cabinet) |
IP65 (Supporting sealed LED cabinet) |
|
|
Working Voltage |
DC 5V |
DC 5V |
|
|
Protective Measures |
Three proofing paint |
Three proofing paint |
|
|
Best Viewing Angle |
H:140°; V:120° |
H:140°; V:120° |
|
|
Recommended viewing distance |
3-50m |
4-50m |
|
|
Standard constant current IC |
PWM |
PWM |
|
|
Refresh rate |
3840Hz |
3840Hz |
|
|
Brightness of white balance |
5000cd/sq.m |
5000cd/sq.m |
|
|
Input voltage |
AC 220V±10% |
AC 220V±10% |
|
|
Operating temperature/humidity |
-20℃~+50℃ |
-20℃~+50℃ |
|
|
Average power consumption |
233w/sq.m |
200w/sq.m |
|
|
Max. Power consumption |
700w/sq.m |
600w/sq.m |
|
|
Life span |
100000H |
100000H |
|
|
Broken rate of the lamp beads |
＜0.0001 |
＜0.0001 |
|
|
MBTF |
>5000 hours |
>5000 hours |
|
|
Coordinate |
X:0.2800 Y:0.3000 ± 0.01 |
X:0.2800 Y:0.3000 ± 0.01 |
|
