Outdoor P10 LED Display Products Description
1, Light weight, each cabinet only 28KG.
2, Cabinets with Protection grade IP65 front and IP54 rear, suitable for all outdoor working environment.
3, Fast locks at the four sides of the cabinet, easy assemble and be piled up and be hoisted.
4, Front or back side maintenance, you can choose by different requirement.

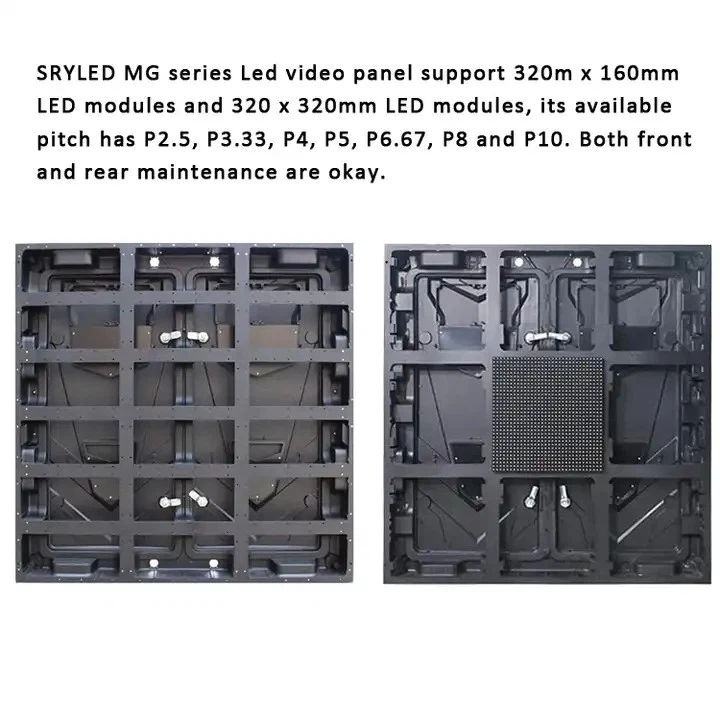

The LOSCEN outdoor p10 LED display Series Led video panel supports 320m x 160mm Led modules and
320 x 320mm Led modules with optional pitches of P2.5, P3.33, P4, P5, P6.67, P8 and P10. Both front and
rear maintenance are available.

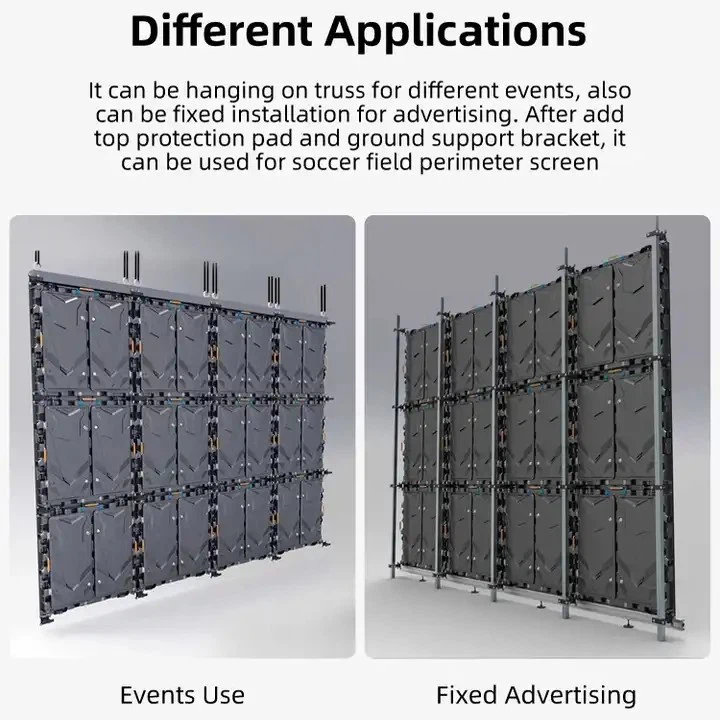

different applications
It can be hung on the truss for different activities, and it can also be fixed for advertising. After adding top
protection pads and ground support brackets, it can be used for stadium perimeter LED screens.
Outdoor P10 LED Displays Specification
|
Item |
P5 |
P6.67 |
P8 |
P10 |
|
Pixel Pitch |
5mm |
6.67mm |
8mm |
10mm |
|
Module Size |
320x160mm |
320x160mm |
320x160mm |
320x160mm |
|
Pixel Density |
40000dots/sqm |
22477dots/sqm |
15625dots/sqm |
10000dots/sqm |
|
Panel Size |
960x960mm |
960x960mm |
960x960mm |
960x960mm |
|
Panel Material |
Die casting magnesium |
Die casting magnesium |
Die casting magnesium |
Die casting magnesium |
|
Panel Weight |
28KG/pc |
28KG/pc |
28KG/pc |
28KG/pc |
|
Drive Method |
1/8 scan |
1/8 scan |
1/4 scan |
1/2 scan |
|
Best Viewing Distance |
5-50m |
6-70m |
8-80m |
10-100m |
|
Vieweing Angle |
H160° V140° |
H160° V140° |
H160° V140° |
H160° V140° |
|
Refresh Rate |
1920Hz |
1920Hz |
1920Hz |
1920Hz |
|
Brightness |
5500nits |
5500nits |
6000nits |
7000nits |
|
Max Power Consumption |
900W/sqm |
800W/sqm |
700W/sqm |
600W/sqm |
|
Average Power Consumption |
400W/sqm |
350W/sqm |
300W/sqm |
280W/sqm |
|
Waterproof Level |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
|
Life Span |
100000hours |
100000hours |
100000hours |
100000hours |
Packing & Delivery
Products Application
