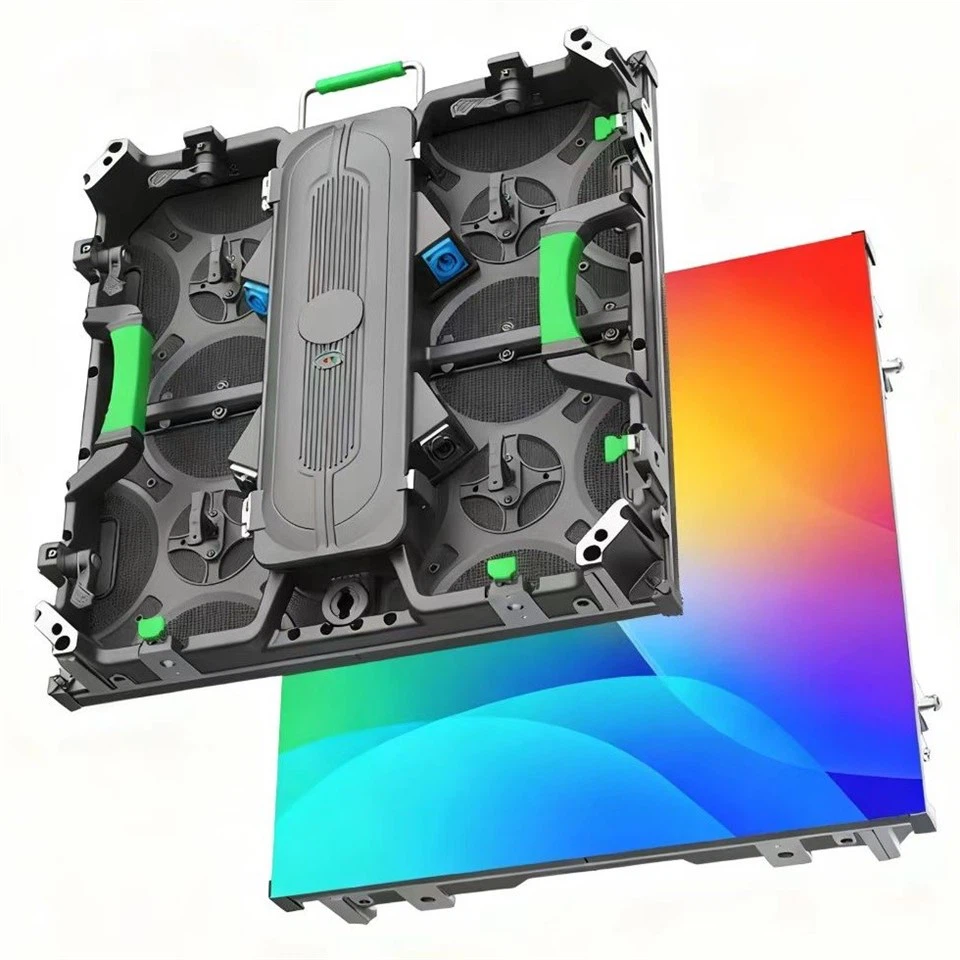

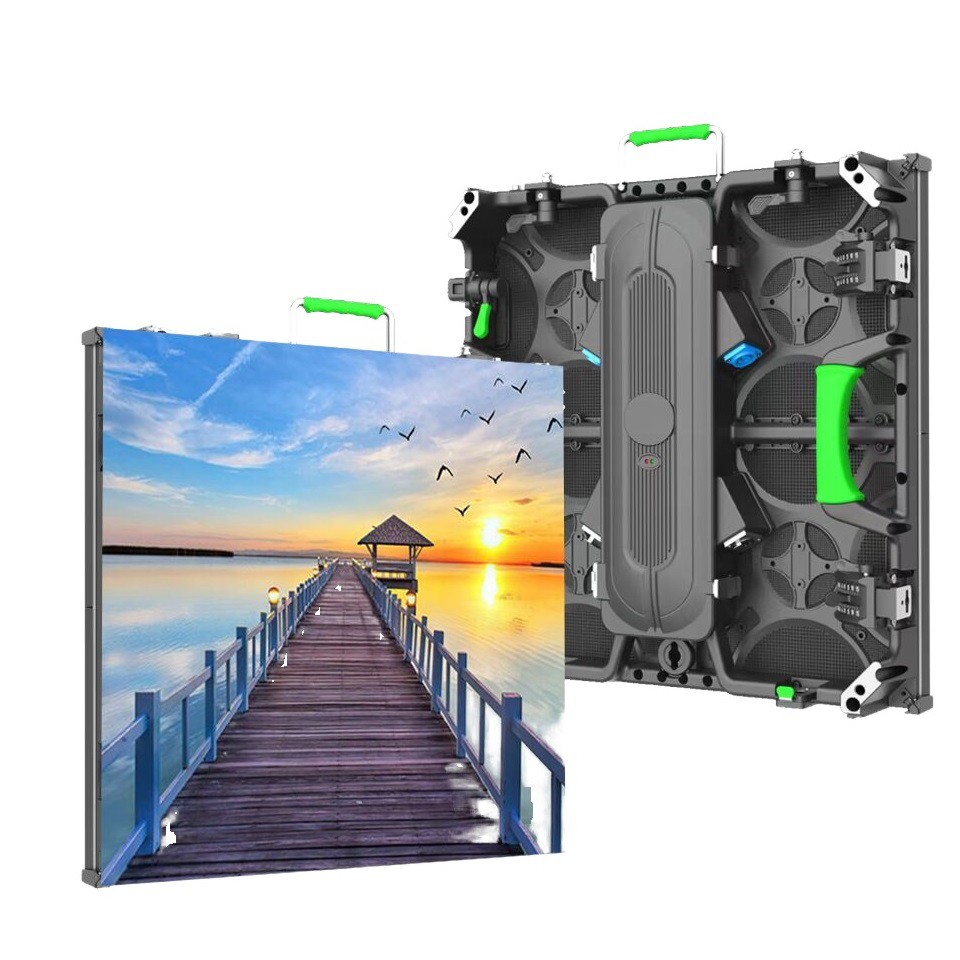

Stage LED Backdrop LED Video Wall For Concerts And Events
STAGE LED WALL BACKGROUND LED FOR CONCERTS AND EVENTS
Pixel pitch: P1.95 | P2.6 | P2.9 | P3.9 | P4.8
Refresh rate: 3840Hz | 7680Hz
Curved locks & corner protector
Front & rear maintenance
Products Description
Cabinet Details

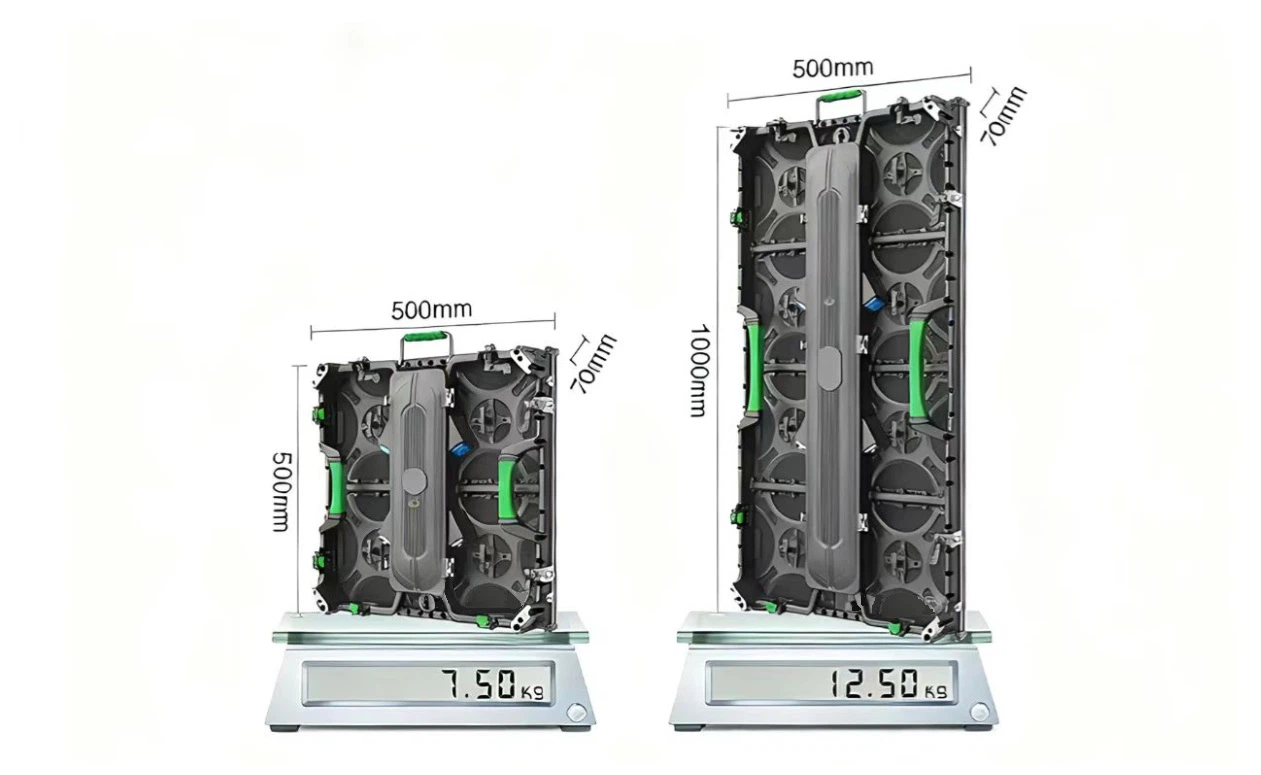

500x500mm and 500x1000mm die cast aluminum cabinet are both available for stage LED wall display.
Easy to Install
LIGHT WEIGHT & HIGH STRENGTH
The die-cast aluminum cabinet has a low density,
making it light and easy to transport and install.
STRUCTURAL ADVANTAGES
The quick-locking mechanism enables multi-directional component alignment in up, down, left and right directions, ensuring rapid and precise installation.
CONVENIENT SPLICING AND CONNECTION
The cabinet connection design covers both vertical and horizontal directions. Its efficient and quick locking mechanism enables the installation to be completed in just 10 seconds. .
Optional Cabinet Size
Portable Stage Background LED Video Wall For Concerts And Events.

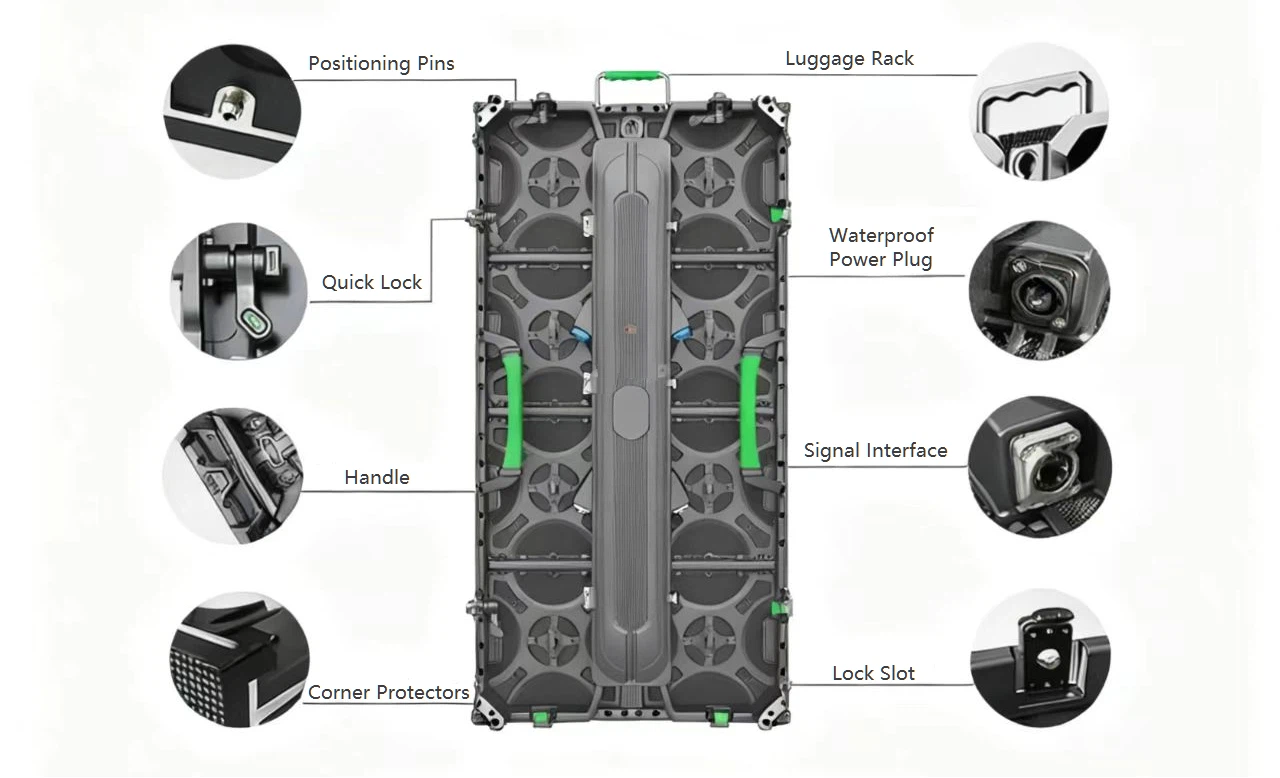

Humanized edge design

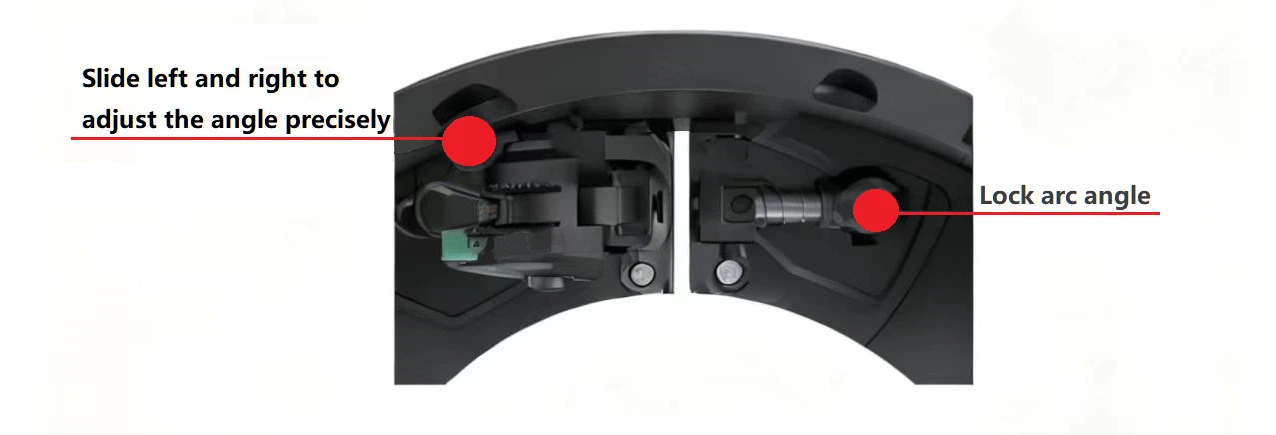

Arc Adjustment
To use the arc locking device, the LED screen will be precisely fitted ti the curved surface, and easily to creat a precise circular LED display.
Anti-interference
Utilizing a highly sensitive receiver chip and Signal connector, to ensure stable interference resistance, which is special designed for harsh environments.

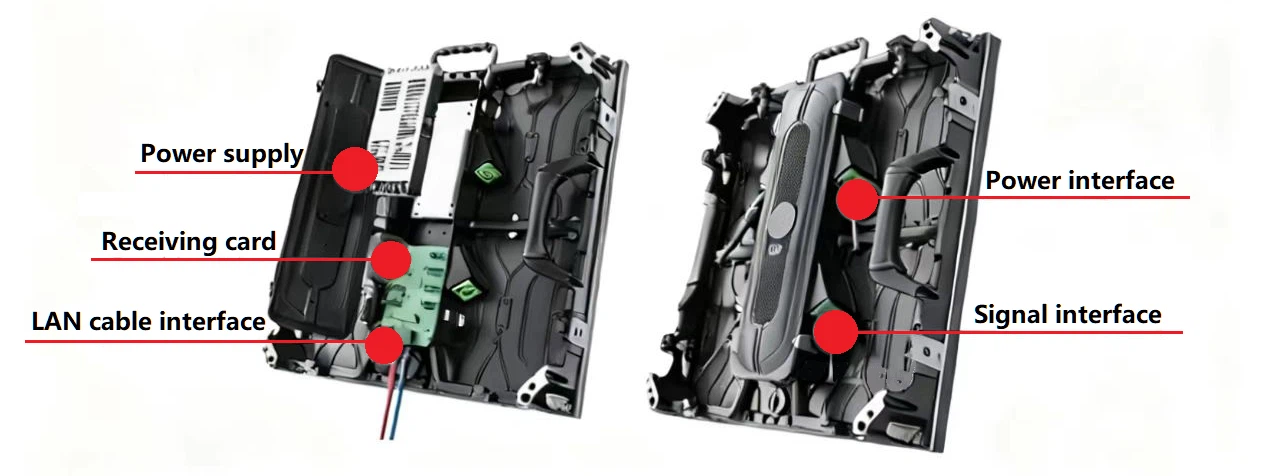

Front & Rear Maintenance
Maintenance operations are easily accessible from the front and rear to keep your system running smoothly.
A variety of combined designs
Various Installation Mode
Products Description
|
Model |
P1.95 |
P2.604 |
P2.976 |
P3.91 |
|
Pixel Pitch |
1.95mm |
2.604mm |
2.976mm |
3.91mm |
|
Density |
262,144 dots/m2 |
147,456dots/m2 |
112,896dots/m2 |
65,536dots/m2 |
|
Led Type |
SMD1515 |
SMD1515 |
SMD2121/SMD1921 |
SMD2121/SMD1921 |
|
Panel Resolution |
256x256dots |
192x192dots |
168x168dots |
128x128dots |
|
256x512dots |
192x384dots |
168x332dots |
128x256dots |
|
|
Drive Method |
1/32 Scan |
1/32 Scan |
1/28 Scan |
1/16 Scan |
|
Best Viewing Distance |
1.95-20m |
2.5-20m |
3-30m |
4-40m |
|
Waterproof Level |
IP31 |
IP31/IP65 |
IP31/IP65 |
IP31/IP65 |
|
Bending Angle |
20-30° |
|||
|
Brightness |
Indoor 800-1000 nits,Outdoor 4500-5000 nits |
|||
|
Panel Weight |
7.5 KG /12.5 KG |
|||
|
Max. Power Consumption |
800W |
|||
|
Ave. Power Consumption |
300W |
|||
|
Panel Size |
500 X 500mm/500 x 1000mm |
|||
|
Input Voltage |
AC110v/220v+10% |
|||
|
Application |
Indoor/Outdoor |
|||
|
Refresh Rate |
3840Hz/7680Hz |
|||
|
Life Span |
100,000 hours |
|||
