Waterproof and Rustproof

The outdoor / indoor stadium perimeter LED screens adopts a waterproof cabinet structure, which effectively prevents objects and dust from entering the screen, and also prevents water from entering the screen even when sprayed. In addition, the cabinet is customized with anti-rust materials.

Ultra High Resolution and High Brightness

Features such as ultra-high resolution, high-definition picture quality and high brightness have made outdoor / indoor stadium perimeter LED screens increasingly popular in recent years. It is widely used in various competitions.

Product Details

● High quality cotton on top to reduce impact.

● Support frame can be adjust the angle.

● Bracket for stadium cabinet weight: 28Kg.

● adjustable bracket, maximum adjustable 90°.

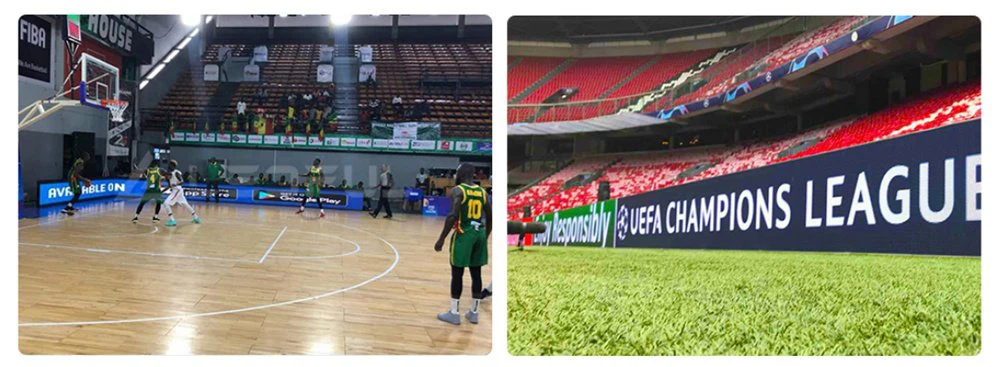

Showcase for Reference

Specification

Product Name	Stadium Perimeter LED Screen
Product No.	P5	P6	P8	P10
Pixel Pitch	5mm	6.67mm	8mm	10mm
Pixel Density	40000 Pixels/m²	22477 Pixels/m²	15625 Pixels/m²	10000 Pixels/m²
Module Size	320*160mm	320*160mm	320*160mm	320*160mm
Module Resolution	64*32 Pixels	48*24 Pixels	40*20 Pixels	32*16 Pixels

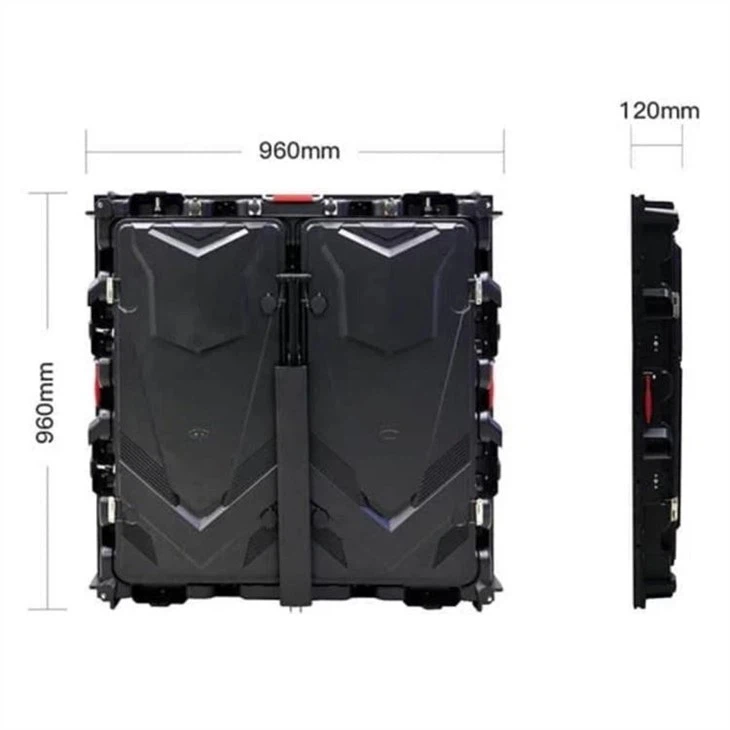

Cabinet Size	960*960mm
Cabinet Resolution	192*192 Pixels	144*144 Pixels	120*120 Pixels	96*96 Pixels
Cabinet Material	Die casting aluminum
Cabinet Weight	28KG	28KG	28KG	28KG
Refresh Rate	1920-3840Hz
Scan Mode	1/8S	1/6S	1/5S	1/4S
Brightness	5000nits	5000nits	5500nits	7000nits
Viewing Angle	H:140 / V: 140	H:140 / V: 140	H:140 / V: 140	H:140 / V: 140
Power Input	AC110V-240V, 50-60Hz
Storage Temperature	-40℃ - 60℃	-40℃ - 60℃	-40℃ - 60℃	-40℃ - 60℃
Working Temperature	-20℃ - 50℃	-20℃ - 50℃	-20℃ - 50℃	-20℃ - 50℃
IP Grade	IP65
Maintenance Mode	Rear Service
